3U VPX AMD Ryzen V4000 SBC

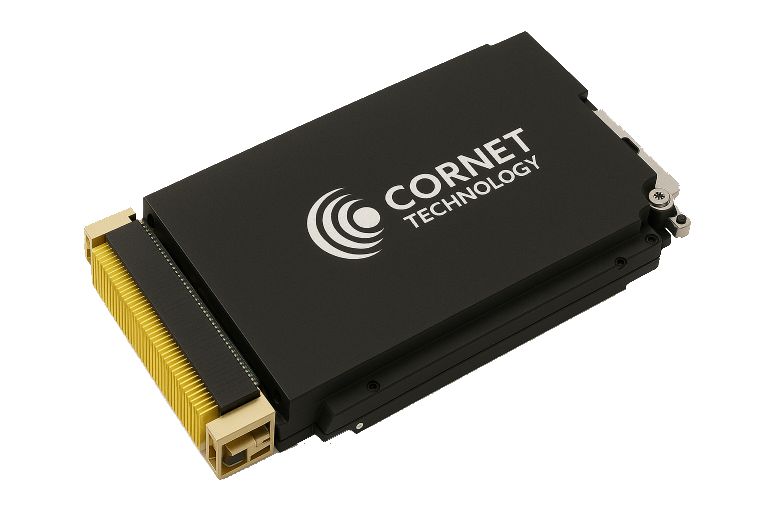

The Atlas V3000 is a rugged 3U VPX single board computer powered by the AMD Ryzen™ Embedded V3000 (Zen3) processor.
Rugged SOSA™ Aligned SBC for Defense & Aerospace
Key Features
8-core AMD Ryzen V3000 processor (Zen3 architecture)
SOSA™-aligned 3U VPX board (1” pitch)
x4 PCIe Gen4 Data Plane + x4 PCIe Gen4 Expansion Plane
Dual 10GBASE-KR + up to 2× 1G/2.5GBASE-T Ethernet ports
Up to 64 GB soldered DDR5 ECC memory (dual channel)
1× XMC site (x8 PCIe Gen4) for I/O or FPGA expansion
M.2 NVMe SSD support with write-protect option
USB4.0 (40 Gb/s), USB 3.2, USB 2.0 interfaces
TPM 2.0 security chip with dual BIOS and VITA 46.11 IPMC
Available in air-cooled (VITA 48.1) and conduction-cooled (VITA 48.2) variants
Overview
- Built for high-performance embedded computing, it delivers reliable processing, fast memory access, and high-speed connectivity for mission-critical applications in defense and aerospace environments.
- Designed in alignment with the SOSA™ Technical Standard, it supports advanced networking, expansion, and storage options — making it ideal for deployment in C4ISR, EW, and rugged vehicle systems.
Specifications
| Features | Specifications |
| Processor | AMD Ryzen Embedded V3000 (4/6/8 cores, Zen3) |
| Memory | Up to 64 GB DDR5-4800 ECC SDRAM |
| Storage | M.2 NVMe SSD (PCIe Gen4), dual SPI Flash, SATA 3.0 |
| Data Plane | x4 PCIe Gen4 (VITA 46.4 compliant) |
| Expansion Plane | x4 PCIe Gen4 (VITA 46.4 compliant) |
| Ethernet | 2× 10GBASE-KR to P1; up to 2× 1G/2.5GBASE-T to P2 |
| USB Ports | USB4.0, USB 3.2 Gen2, USB 2.0 (front + P2) |
| Expansion Slot | 1× XMC (VITA 42.0/61/88), PCIe Gen4 x8 |
| Serial I/O | Up to 3× RS232/422/485 ports (via VPX) |
| Management | IPMC (VITA 46.11 Type 3), onboard system controller |
| Security | TPM 2.0, dual BIOS |
| Power Input | +12V and +3.3V_AUX |
| Operating Temp. | 0°C to +55°C (air) / -40°C to +85°C (conduction) |
| Storage Temp. | -55°C to +105°C |
| Humidity | 5% to 95% RH, non-condensing |
| Vibration | -12Grms (random), 5g (sinusoidal) |
| Compliance | VITA 46/65, SOSA™, MIL-STD-810 aligned |
Application Areas
Ground vehicle and UAV mission computers – real-time processing with rugged SWaP
Naval and airborne systems – high-speed data plane and secure comms
C4ISR, EW, and situational awareness systems – compute-intensive defense applications
Signal processing platforms – radar, sonar, and real-time data fusion engines
