6U VPX “ESM” NXP QorIQ T4241 Processor Board
Phantom series 6U VPX “ESM” NXP QorIQ T4241 SBC is a variant of the 12-core QorIQ T4241 board featuring an Enhanced System Module (ESM) configuration.
VPX SBC for Defense & Aerospace
Key Features
NXP QorIQ T4241 processor (12 cores, PowerPC e6500 with AltiVec) @ 1.8 GHz
6 GB DDR3L ECC SDRAM main memory
Onboard Xilinx Kintex-7 FPGA for custom I/O and data routing
Multi-plane fabric connectivity (PCIe, SRIO) for high-bandwidth data exchange
Dual 10G Ethernet and triple Gigabit Ethernet to VPX backplane
Custom Rear Transition Module (RTM) support for extended I/O (ESM architecture)
Rugged air-cooled and conduction-cooled versions available
Supports multiple operating systems/BSPs (Linux, VxWorks)
Overview
- It provides the same high performance multi-core processing as the standard version, with additional support for custom rear transition modules to expand I/O.
- This makes it ideal for applications requiring extra I/O flexibility in harsh defense and aerospace environments.
Specifications
| Features | Specifications |
| Processor & Chipset | NXP QorIQ T4241 12-core processor @ 1.8 GHz with integrated SoC chipset |
| Memory | 6 GB DDR3L ECC SDRAM; onboard Flash for boot firmware |
| I/O Interfaces | 2 × 10G Ethernet (backplane); 3 × 1G Ethernet; PCIe and SRIO fabric links; USB 2.0; GPIO via RTM connectors |
| Expansion slots | Rear Transition Module (RTM) provides additional I/O breakout (ESM design) |
| Storage | NAND Flash onboard; supports boot from Flash or network |
| Environmental | Conduction or air cooling; operating temp -40 °C to +70 °C (conduction); meets MIL STD-810 environmental criteria |
| Compliance | VITA 65 OpenVPX profile, custom RTM for ESM |
Application Areas
Sensor fusion and signal processing in radar/sonar systems
Network-centric and communication systems in defense platforms
Electronic warfare and signals intelligence (SIGINT) applications
Related Products

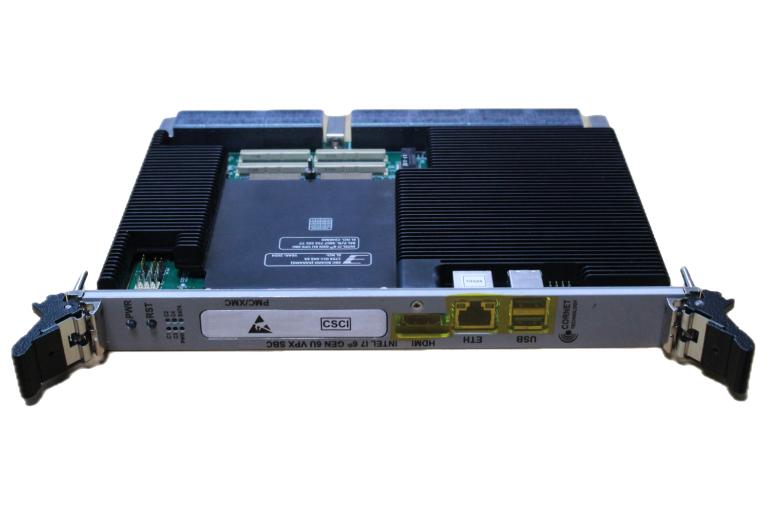

6U VPX Intel Core i7 (6th Gen) SBC
