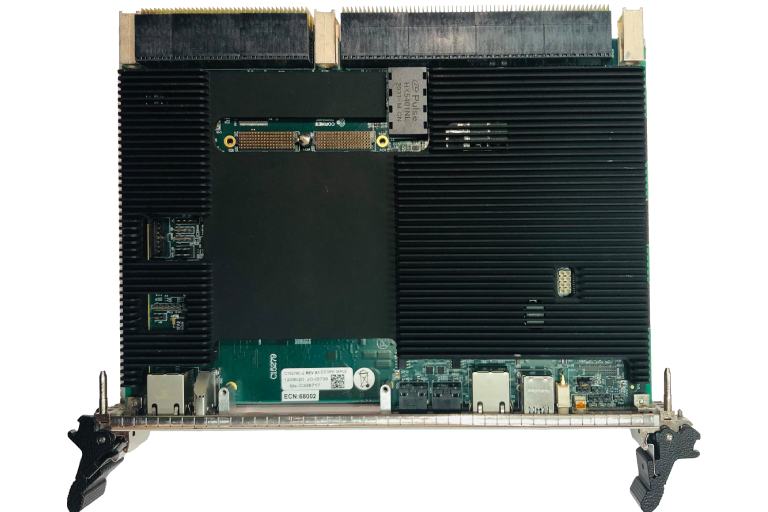

6U VPX Intel® Core i7 (11th Gen) SBC
Viking series 6U VPX Intel® Core i7 (11th Gen) SBC is a rugged board based on the 11th Generation Intel® Core™ i7 processor.
Rugged SOSA™ Aligned SBC for Defense & Aerospace
Key Features
11th Gen Intel® Core™ i7-1185GRE processor (4 cores, 8 threads)
Up to 16 GB DDR4 ECC memory (dual-channel)
Dual 10 Gigabit Ethernet (backplane) and multiple 1 Gigabit Ethernet ports for control
PCIe Gen3 backplane interfaces for high-speed interconnects
XMC expansion site for additional I/O or coprocessing modules
On-board NVMe SSD storage and SATA Flash for OS
Integrated Intel Iris Xe graphics (Gen12) for GPGPU and video acceleration
Air-cooled and conduction-cooled versions available (-40 °C to +85 °C)
Supports multiple operating systems/BSPs (e.g., Linux, VxWorks)
Overview
- It delivers high-performance computing in a 6U VPX form factor for mission applications.
- This SBC is suitable for harsh environments and provides advanced processing and graphics capabilities for defense systems requiring intensive data and video processing.
Specifications
| Features | Specifications |
| Processor & Chipset | Intel® Core™ i7-1185GRE CPU (4-core, 11th Gen Tiger Lake) with integrated PCH |
| Memory | 16 GB DDR4 ECC SDRAM (soldered) |
| I/O Interfaces | 2 × 10G Ethernet (backplane), 2 × 1G Ethernet; USB 3.0/2.0; serial ports; GPIO lines to backplane |
| Expansion slots | 1 × XMC site (PCIe x8) for mezzanine module |
| Storage | Onboard NVMe SSD (up to 1 TB); 64 GB SATA Flash; SD card slot |
| Video/Audio | Integrated Intel Iris Xe GPU (DisplayPort output via front panel on air-cooled variant) |
| Environmental | Operating temperature -40 °C to +85 °C (conduction-cooled); shock and vibration per MIL-STD-810 |
| Compliance | VITA 46/65 OpenVPX compliant |
Application Areas
Mission computing for ground vehicles, naval systems, and airborne platforms
High-performance embedded computing for C4ISR and situational awareness systems
Computing engine for radar, sonar, and electronic warfare signal processing
