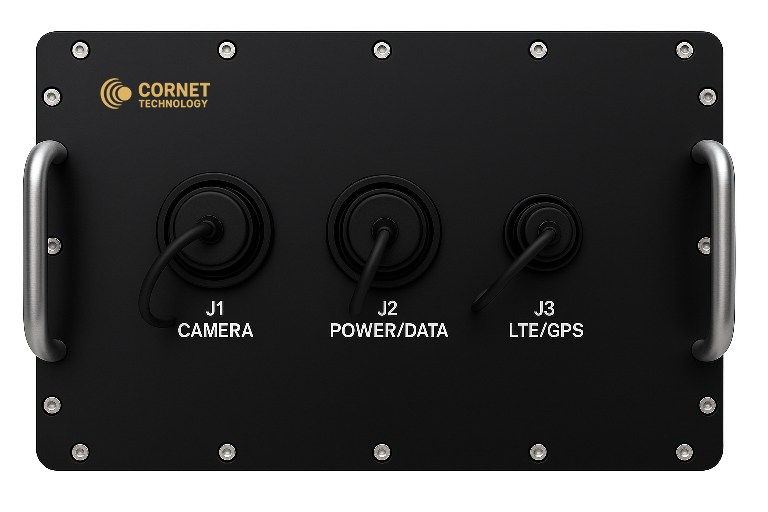

IMSS System Controller CPU Box
Sentinel series IMSS System Controller CPU Box serves as the core processing unit for
an Integrated Marine Surveillance System (IMSS).
an Integrated Marine Surveillance System (IMSS).
Rugged SOSA™ Aligned SBC for Defense Avionics
Key Features
Intel multi-core processor-based system controller (e.g., Quad-core Intel Xeon-E or Core-i7)
8 GB DDR4 memory for data processing and buffering
Dual Gigabit Ethernet ports for sensor and downstream network integration
Optional CAN-bus or serial links for legacy sensor/control interfacing
Solid-state drive for OS and data (256 GB SSD)
Rugged fanless enclosure suitable for shipboard or coastal installations
Redundant power inputs (AC and 24 V DC) with surge protection for reliability
Wall or rack-mountable chassis with conformal coated PCBs for marine environment
Pre-installed surveillance management software (for sensor integration, UI, etc.)
Overview
- It is an indigenous rugged computing unit that orchestrates sensor data (radar, sonar, cameras) and communications in coastal surveillance setups.
- Featuring a multi-core Intel processor, high-speed networking, and robust enclosure, the IMSS controller reliably manages surveillance data and operator interfaces in maritime environments.
Specifications
| Features | Specifications |
| Processor & Chipset | Intel CoreTM i7 quad-core CPU or Xeon-E (as configured) with embedded chipset graphics |
| Memory | 8 GB DDR4 SDRAM (ECC optional) |
| I/O Interfaces | 2 × Gigabit Ethernet (RJ45 or rugged M12 connectors); 4 × RS-232/422 serial ports; 4 × USB 3.0; 2 × CAN 2.0b ports (for subsystems); HDMI/DisplayPort output for console display |
| Storage | 256 GB SSD (SATA); expandable via mSATA or 2.5′′ bay |
| Power | 100–240 VAC input and 18–36 VDC input (auto-switching); approx. 60 W consumption |
| Environmental | -20 °C to +60 °C operating; enclosure IP65 rated against water and dust; meets IEC 60945 maritime environmental standards |
| Compliance | CE and MIL-STD-461 for EMI; designed to Navy shock standards |
Application Areas
Oceanographic data collection on autonomous buoys and research vessels
Long-term environmental monitoring for naval and climate research
Remote sensor logging in harsh marine conditions
