Multi-Channel HMI Console
The Mantis Series HMI Console is a ruggedized multi-function dual-display operator console built for real-time control and monitoring in naval combat centers, ground command vehicles, and optronics sensor stations.
Rugged SOSA™ Aligned SBC for Defense & Aerospace
Key Features
Dual 19" or 21.5" high-brightness LCD displays with optical bonding and optional touch interface (glove-compatible)
Picture-in-Picture or Quad View support for multiple sensor feeds (digital and analog)
Integrated ruggedized keyboard, joystick, trackball, and sealed function keys
Customizable KVM or video switching interfaces to handle up to 12 input sources
Modular chassis with VPX card support and GPGPU-based real-time video processing
Supports real-time video annotation, recording, and playback
Built-in health monitoring, EMI shielding, and thermal management systems
Modular cable routing tunnels and C-section design for simplified field servicing
Shock-mounted displays and MIL-grade chassis for mobile deployment
Front IP65 sealed panel with NVIS-compliant backlighting
Overview
- Designed for military-grade reliability, the console integrates dual high-resolution displays, multiple video and data input interfaces, a sealed input control panel, and optional touch interaction.
- The modular build supports integration with VPX-based processing and video sub-systems, making it ideal for scalable deployment in ISR, EO/IR control, and command & control applications aboard ships or submarines.
Technical Specifications
| Component | Specifications |
| Displays | 2 × 19″ or 21.5″ LCD panels, 1280×1024 or 1920×1080, 800–1000 cd/m² brightness, NVIS compliant |
| Touchscreen | Multi-touch capacitive, glove-compatible (optional) |
| Video Inputs | Up to 12 inputs; mix of HDMI, DVI, VGA, HD-SDI, Composite |
| Video Features | Quad-view, PIP, channel switching, real-time annotation & overlay |
| User Input | Backlit QWERTY keyboard, 2-axis joystick, rugged trackball with scroll buttons |
| Audio I/O | 1 × Mic In, 1 × Headphone Out, integrated speakers (optional) |
| Connectivity | USB 2.0 / 3.2 ports, Ethernet 1G/2.5G (optional), MIL-grade I/O panel |
| Power Input | 18–36 V DC (vehicle/naval); Optional 110/230V AC via PSU |
| Power Management | Dual PSU (800W), with relay-controlled distribution and 12V DC auxiliary outputs |
| Cooling | Passive/Active with forced-air channels and condensation control |
| Construction | Aerospace-grade HE30 aluminum alloy, marine-grade powder coating |
| Compliance | MIL-STD-810G (shock, vibration, altitude), MIL-STD-461F (EMI), JSS 55555 (Naval) |
| Mounting | Vehicle/console rack mount with adjustable tilt; modular structure for disassembly |
| Dimensions | Configurable as per deployment needs; console weight ~170 kg assembled |
Application Areas
Naval Combat Consoles
EO/IR sensor feed monitoring and fire control integration
Ground C2 Vehicles
Multi-screen operator interface for surveillance & targeting
Submarine Optronics Stations
Video processing, control, and storage interface
Mobile Command Centers
Touch-interactive console for multi-channel mission feeds
Related Products
1 Air Transport Rack (ATR)
Rugged Mission Computer is a full-size ATR chassis mission computer offering a high slot count for VPX modules and extensive I/O.
High Speed NVMe Digital Data Recorder
NVMe recording system engineered for data-intensive defense applications such as packet capture, replay, and secure logging in naval or airborne platforms.

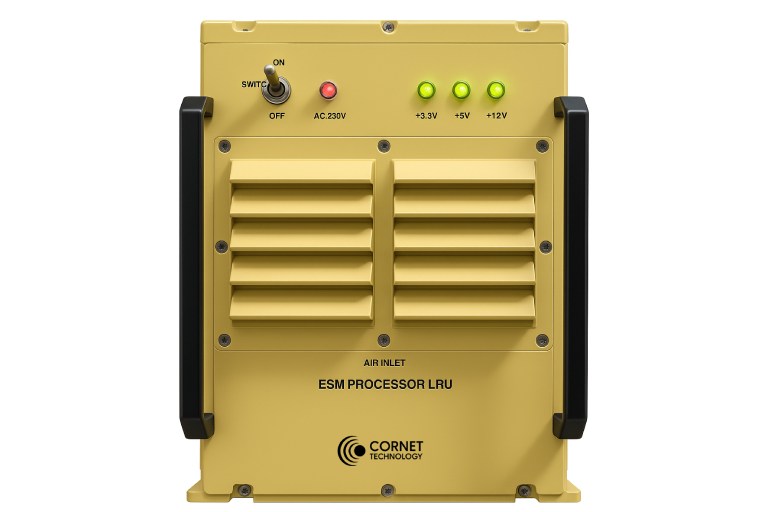

6U VPX ESM LRU
