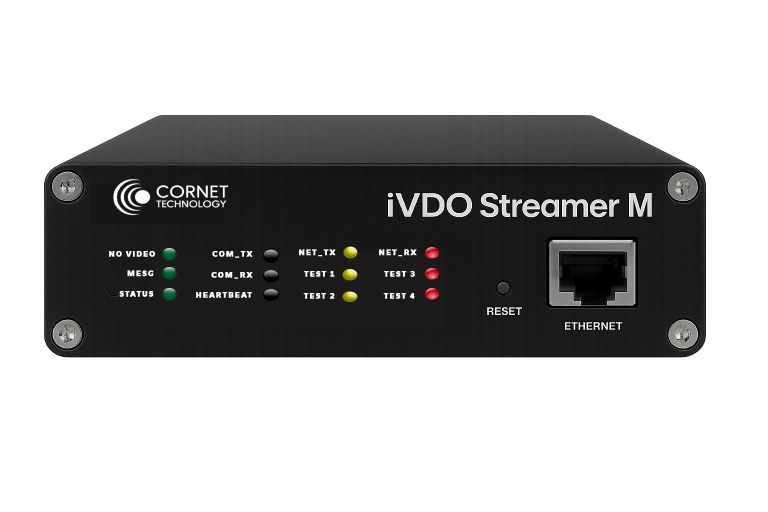

iVDO Recorder & Streamer
Spectre series iVDO Rugged Audio-Video Streamer is a rugged audio-video streaming
system designed for mission recording and live streaming applications.
Rugged SOSA™ Aligned SBC for Defense & Aerospace
Key Features
6U VPX video streaming module with Intel® CoreTM i7 processor (Quad-core)
Dual-channel WUXGA (1920×1200 @ 60 Hz) video capture with synchronized audio
Real-time H.264 video encoding and network streaming capability
Onboard 512 GB SSD for recording video locally
Stream over 1 GbE or 10GbE Ethernet (RTP/RTSP or custom protocol)
Picture-in-picture and simultaneous record/playback support
Rugged air-cooled and conduction-cooled variants (-40 °C to +70 °C)
MIL-DTL-38999 connectors for all I/O (video, Ethernet, power) in deployed configuration
STANAG 4609 compliant metadata insertion for ISR applications
Supports multiple operating systems (Linux, Windows IoT)
Overview
- It can capture and compress multiple video channels with audio, enabling live surveillance feeds and mission data recording on airborne or ground platforms.
- Built to withstand extreme conditions, the iVDO streamer ensures continuous operation of video streams in defense and aerospace missions.
Technical Specifications
| Component | Specifications |
| Processor & Chipset | Intel® CoreTM i7 quad-core CPU with integrated GPU for encoding; PCH chipset for I/O |
| Memory | 16 GB DDR4 memory |
| I/O Interfaces | 2 × analog VGA inputs (or DVI inputs via adapter) with stereo audio; 2 × Gigabit Ethernet ports; USB 2.0 for setup/maintenance |
| Storage | 512 GB rugged SATA SSD for local video storage; expandable via VPX backplane I/O |
| Video/Audio | Supports up to 2 simultaneous video streams encoding at 1080p60; audio input for each video channel; H.264/MPEG-4 compression |
| Environmental | Air-cooled 0 °C to +55 °C or conduction-cooled -40 °C to +70 °C; meets MIL-STD-810 (vibration, temperature) and MIL-STD-461 (EMI) |
| Compliance | VITA 65 OpenVPX, VITA 48 (REDI); STANAG 4609 metadata tagging for video streams |
Application Areas
Real-time surveillance video streaming from unmanned systems
Situational awareness video feeds on military ground vehicles
Airborne video capture and distribution for reconnaissance missions
Related Products

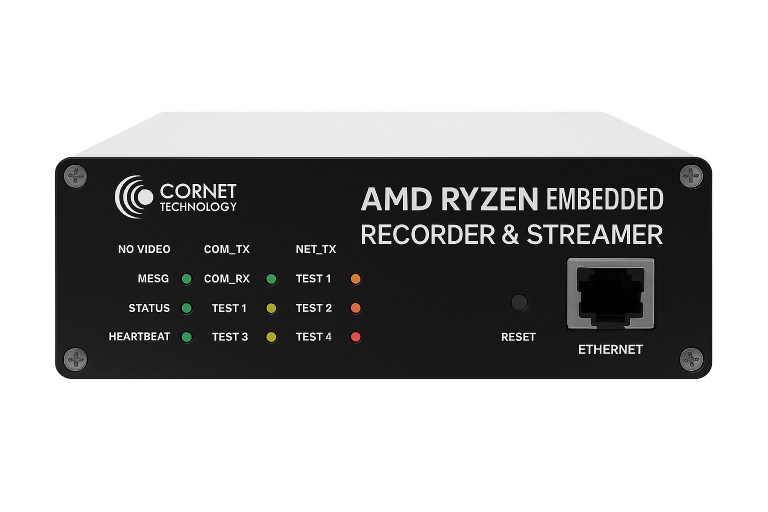

iVDO AMD Recorder & Streamer
